Vibration Welding machine
Vibration Welding Machine for Large & Complex Plastic Parts
Jfortune designs and manufactures servo and hydraulic vibration welding machines for automotive, appliance, medical and industrial plastic components, with customized tooling and complete project support.
Servo / Hydraulic Systems · Customized Welding Tooling · Large Plastic Parts · Automation Integration
How Does Vibration Welding Work?
Vibration Welding is a joining solution used for welding various components, especially those that are complex, irregularly shaped, or large. This method harnesses the power of heat energy, which is generated by inducing a linear, back-and-forth motion in one part while keeping the other part stationary. As the movement generates heat, it initiates a controlled melting process at the interface of the parts. For successful vibration welding, the design of the parts should accommodate the relative motion involved in the process.
Vibration welding machine technology uses fast back-and-forth motion to generate heat and friction at the joint between the parts being joined. This continues until the plastic reaches a molten state. Once the plastic is molten, it solidifies under pressure, creating a strong, permanent bond. In addition to traditional linear vibration welding, Jfortune vibration welders offer orbital vibration technology, which expands the welding options to meet a wider range of requirements.
01 Load Parts → 02 Clamp → 03 Vibration & Melting → 04 Hold & Cool → 05 Unload
Compatible with Your Existing Welding Tooling
Jfortune vibration welding machine 's base plate can be customized per the customer's requirement, so other brands vibration welding tools can be used in our vibration welder.
Reuse Existing Tooling · Reduce Changeover Cost · Simplify Equipment Replacement
Vibration welding offers several advantages as a joining method:
- Fast weld times: around 20 seconds from one part to another.
- Power efficiency: It is considered a green machine as it is energy-efficient, making it a sustainable choice for manufacturing processes.
- Reusable resource: Vibration welders have a long lifespan, often lasting between 12 to 16 years, making them a durable and reusable resource.
- Quick change tooling: enables the use of multiple parts by facilitating easy and efficient tooling changes, increasing productivity and flexibility.
- No marking of show surfaces: Vibration welding ensures that no visible marks or blemishes are left on the surfaces of the assembled parts, maintaining their aesthetic appeal.
- Accurate part-to-part dimensional: The precision of vibration welding results in consistent and accurate dimensions between the joined parts, ensuring a reliable fit.
- Strong welds: Vibration welding creates strong, reliable welds, producing durable connections between the parts.
- Hermetic seals: This method can achieve hermetic seals, ensuring an airtight or watertight joint when required, providing excellent sealing properties.
Jfortune Vibration Welding Solutions
Servo Vibration Welding Machine
Best for: Automotive and precision plastic components
Key Features: Precise motion control, repeatable welding parameters and flexible process adjustment.
Hydraulic Vibration Welding Machine
Best for: Large industrial plastic components
Key Features: Robust structure, high clamping capability and reliable production performance.
IR Preheating Vibration Welding Machine
Best for: Automotive lighting and appearance-sensitive components
Key Features: Infrared preheating before vibration welding helps reduce particle generation and improve weld cleanliness.
also can make welding tools per customers’ vibration welding machines, especially for different types of Branson welding machines.
Application Considerations
- Medical applications include surgical instruments, filters and I-V units, bedpans and insulated trays.
- Jfortune vibration welders find extensive utility across various industries and applications. Here are some examples:
- Automotive assembly: Jfortune vibration welders are well-suited for joining components in automotive applications such as door panels, intake manifolds, instrument panels, tail lights, lenses, fluid reservoirs, and bumpers.
- Aviation applications: like assembling HVAC ducts, air diverter valves, interior lighting, and overhead storage bins.
- Appliance manufacturing: like dishwasher pumps and spray arms,
detergent dispensers, and vacuum cleaner housings.
- Accessories applications: like business and consumer toner cartridges, point-of-purchase displays, display stands, and shelves.
- Chainsaw housings and power tools: Vibration welders are utilized in the assembly of chainsaw housings and power tools.
- Medical applications: These welders find applications in the medical field for joining surgical instruments, filters, I-V units, bedpans, and insulated trays.
Typical Materials for Vibration Welding
PP · PE · ABS · PC/ABS · PA · TPE and other compatible thermoplastics
Material weldability depends on resin type, fillers, additives, joint design and process requirements. Jfortune can evaluate your actual parts before machine configuration.
Is Vibration Welding Right for Your Part?
Vibration welding is typically suitable when your product requires:
- Large or irregular thermoplastic components
- Strong structural joints
- Air-tight or water-tight sealing
- High-volume production
- Consistent dimensional control
- Welding areas too large for conventional ultrasonic welding
Final process selection depends on part geometry, plastic material, weld-line design, appearance requirements and production cycle.
Why Choose Jfortune for Your Vibration Welding Project?
01 Engineering-Driven Project Execution

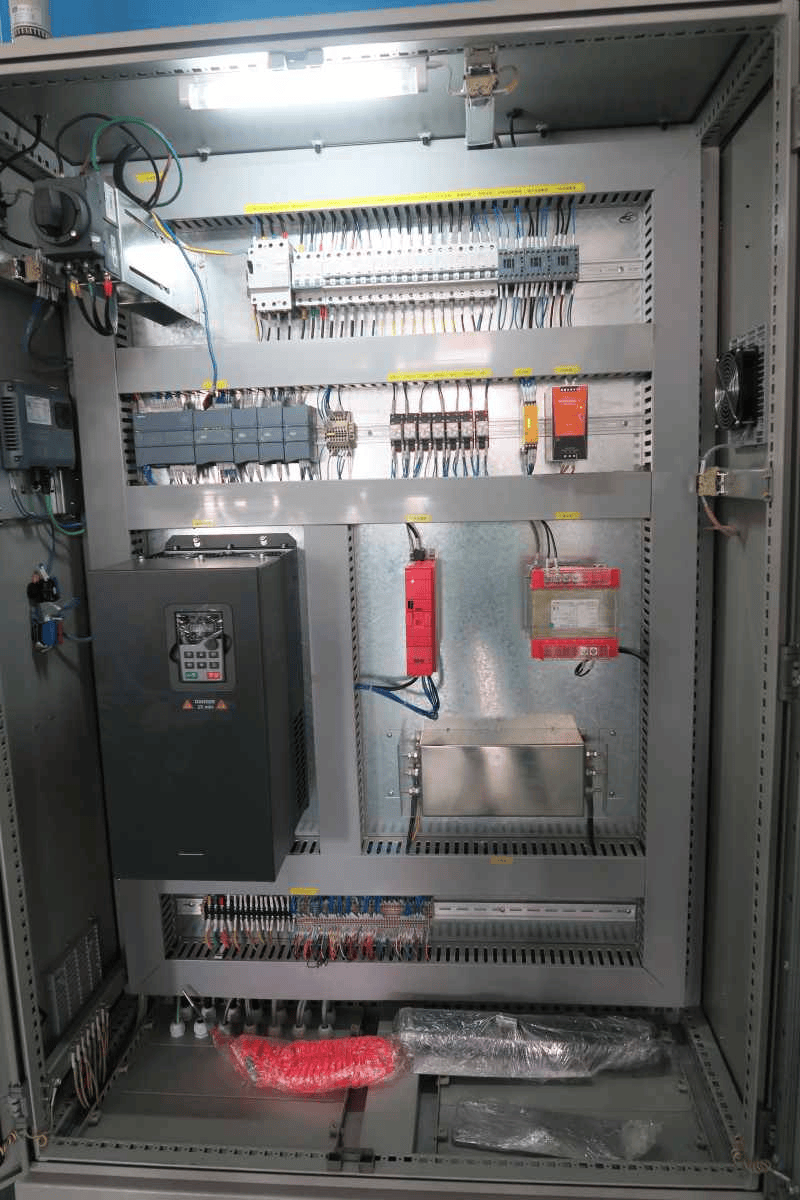

Process evaluation, mechanical design, electrical control, PLC programming and commissioning handled by an experienced engineering team.
02 Complete Project Responsibility
One team manages technical clarification, machine engineering, tooling, manufacturing, FAT and delivery.
03 In-House Manufacturing & Commissioning
Machine assembly, tooling integration, debugging and sample welding are completed before shipment.
04 Global Technical Support
Remote and on-site technical support is available for installation, commissioning, maintenance and troubleshooting.
